Brand Name : | AORUI |
Model Number : | SJSZ65X132 |
Certification : | CE, UL, CSA, ISO9001 |
Price : | Negotiation |
Payment Terms : | T/T, L/C, Western Union |
Supply Ability : | 10 Sets per month |
Delivery Time : | 30 days |
WPC Profile Production Line With Reasonable Price , Plastic Profile
Extrusion Line
Quick Detail:
1.Plastic Window Door Profile Production Line adopt pvc powder
material to produce various window door profile, decoration profile
and other product.
2.According to abroad technique and domestic technique,the machine has reasonable design, it has such features, plasticization even, low shear rate, long service life.
3.This profile production line includes Conical twin screw extruder, Vacuum sizing table, Tractor, Cutter, Stacker.
Description:
1.The main machine of this pvc profile extrusion line adopt AC frequency control, the extrusion output can improve 50%, it also can save 20% to 30% power. Temperature controller adopt import brand RKC and Omron. Hard tooth surface reducer can continute to work long time wthout breakdown.
2.Auxiliary machine vacuum pump and tractor motor all adopt high
quality product.Easy to maintenance, after change the screw and
mould, it can directly extrusion foam profile product, the effect
is better than single screw.
3.Screw and barrel adopt doublemetal treatment, corrision
resistance, it has long service life.
4.PVC Profile has such characteristics as sound separation, sound
absorption, heat separation, temperature-keeping,etc. The material
is incombustible, it is safe for use.
Applications:
The PVC profile extrusion line is used to produce all kinds of PVC
profile such as window & door profile, PVC wire trunking, PVC water
trough, PVC ceiling panel and so on.
PVCPlastic Window Door Profile Production Line Technical Parameter:
Production line model | Extruder model | Width | Total power | Cooling water volume | Compress air pressure | Traction speed | Output |
MS-PXC180 | SJSZ51×105 | 180mm | 37kw | 5 | 0.6Mpa | 1-8m/min | 100KG/H |
MS-PXC240 | SJSZ65×132 | 240mm | 45kw | 5 | 0.6Mpa | 1-6m/min | 150KG/H |
MS-PXC300 | SJSZ80×156 | 300mm | 60kw | 7 | 0.6Mpa | 1-8m/min | 260KG/H |
Application:
Specialized in different kinds of PVC/WPC/PE/PP/PET/UPVC Window and
door Profile extrusion line, please send us your profile drawings,
we will offer you best price with best quality, expecting to
hearing from you soonest.
Machine Competitive Advantage:
1.Motor adopt siemens brand, other electric parts adopt famous
brand such as Omron, RKC, Schneider.
2.It has wide application, through change mould , this profile machine can produce various profile product.

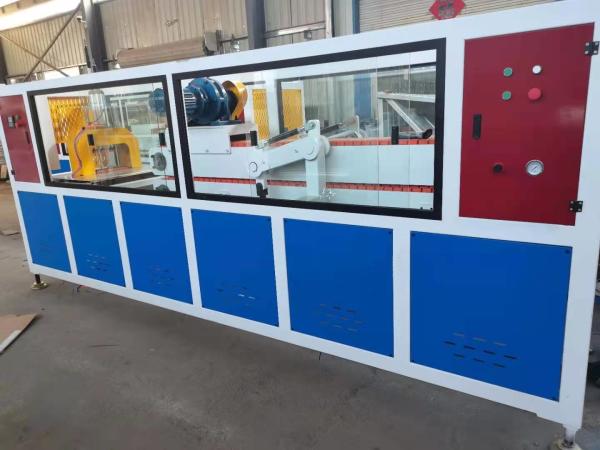

Machine display:
![]() |
