PE WPC Bench Plastic Profile Extrusion Line , Parapet Profile
Machine
Brief introduction of pvc profile machine:
1.This pvc ceiling making machines can be used to manufacture window
profile and door profile, ceiling and wall panels, and other
irregular shape profile widely used in home internal decoration.This machine for produce pvc wall panel can be designed according
to the requests of clients.
2.This line features stable plasticization, high output,low sheering
force,long life service and other advantages.
Description:
PE/PP WPC Wall Panel/Decking/Fence Plastic Profile Production Line
1.PE WPC floor profile is special for outdoor. This machine uses
the special designed screw and barrel, die
and extrusion process to produce plastic and wood products.
2.The series of products are: One step thick plastic and wood plate
extrusion machine, one step plastic and
wood profile extrusion machine, one step plastic and wood
decoration plate extrusion machine, plastic and
wood pelletizing machine and different kinds of plastic and wood
dies.
3.This machine can use the one step extrusion method and also it
can use the two-step extrusion method
after pelletizing. The two-step extrusion method can save the power
and space, and the two-step extrusion
method features the machine can gain the high output and stable
extrusion pressure.
4.A pre-heating feeder is mounted on the top of the extruder which
extracts the humidity from the wood
powder, so that the feeding section of the extruder can be filled
with enough material and the plastification
effect will be better.
5.Special and well designed screw enables the raw material to be
evenly stay in the extruder. The screws
and barrel are bi-metallic treated, more wearable and
anti-corrosion.
6.feature:fire protection,moistureproof,water resistant,insect
resistant,non deformation
wood powder material: Straw, flax, peanut shells,etc
advantage:environmental product,plasticizing uniform,long life.
raw material:wood powder with PE/PP,PP/PE can be recycled,additive
material.

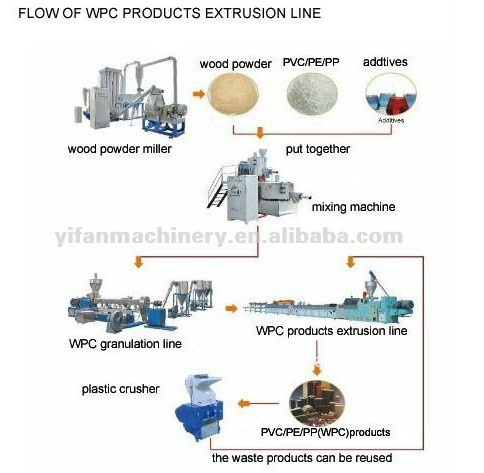

7.flow chart:
Applications:
1.field:outdoor,building,logistic,car,garden,home decoration,
2.product:pallet,wooden house,seat back,container
plate,baseboard,building template,moisture-proof board,furniture,instrument panel,chair,tray,plank, cabin partition
table,promotion board,etc.
3.application
area:packaging,decoration,construction,logistics,gardens,municipal administration,traffic,sports,environmental
protection,military,home furnishing,children’s toys
4. Available in different colors and wood grain design
5.Material is 100% recycled.
6. Complete process:
Milling → Mixing → Extruding → Mold → Calibrating → Hauling off→
Cutting→
Embossing,polishing,sanding→ Final product
Specifications:
| Model | Screw dia.(mm) | Ratio of screw length to dia. | Rational speed of screw(r/min) | Center height(mm) | Capacity(kg/h) | Motor power(kw) |
| SJ-30/25CY | 30 | 25:1 | 10-160 | 1000 | 19.5 | 2.2, 3 |
| SJ-30/28CY | 30 | 28:1 | 10-160 | 1000 | 21 | 2.2, 3 |
| SJ-45/25HY | 45 | 25:1 | 16-160 | 1000 | 35 | 5.5, 7.5 |
| SJ-45/28HY | 45 | 28:1 | 16-160 | 1000 | 40 | 7.5, 11 |
| SJ-65/25HY | 65 | 25:1 | 8-80 | 1000 | 100 | 18.5, 22 |
| SJ-65/30CY | 65 | 30:1 | 15-120 | 1000 | 120 | 22, 30, 37 |
| SJ-90/25HY | 90 | 25:1 | 10-100 | 1000 | 155 | 30, 45, 55 |
| SJ-120/25HY | 120 | 25:1 | 30-90 | 1000 | 250 | 75 |
Competitive Advantage:
1). Mainly used to produce the PVC window profiles, plastic
decorative plates and PVC foam profiles
2). Use frequency conversion for speed regulation
3). Has super-taper twin-screw extruder with temperature
controlling instrument in the screw core
4). Saves power by 30% - 40%
5). The rigid gear surface of the reducer can be operated
continuously for a long time without trouble
6). Operation and mold changing are smooth and steady
7). Long usage life
8). Can produce steel plastic profiles by changing the wood
imitation foaming profile mold, combines with one set of steel
liner conveying devices.
